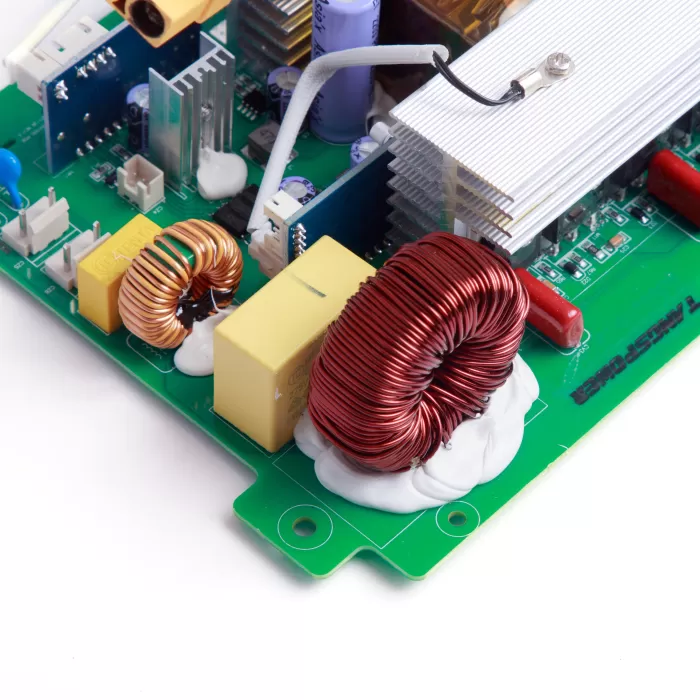

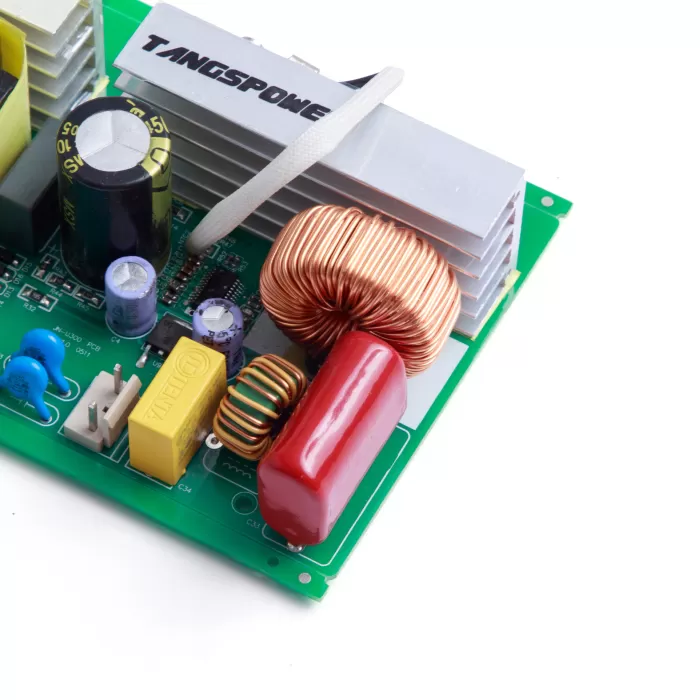

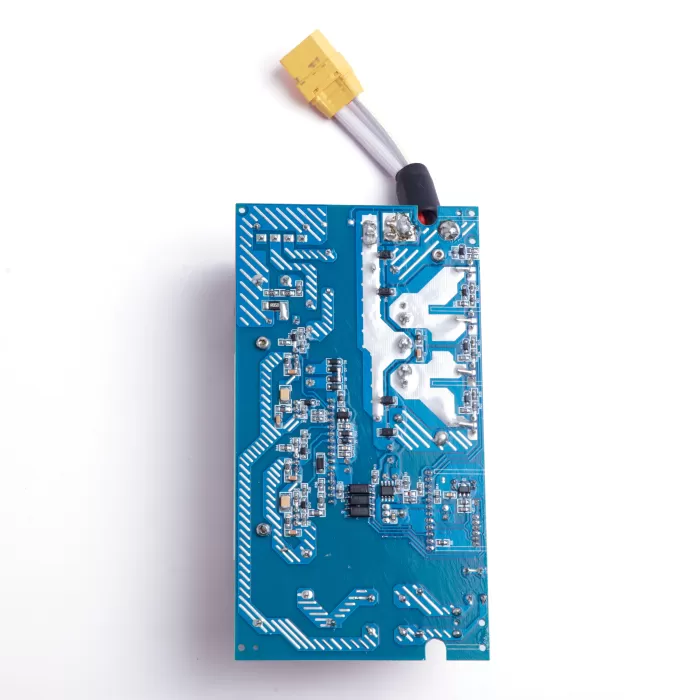

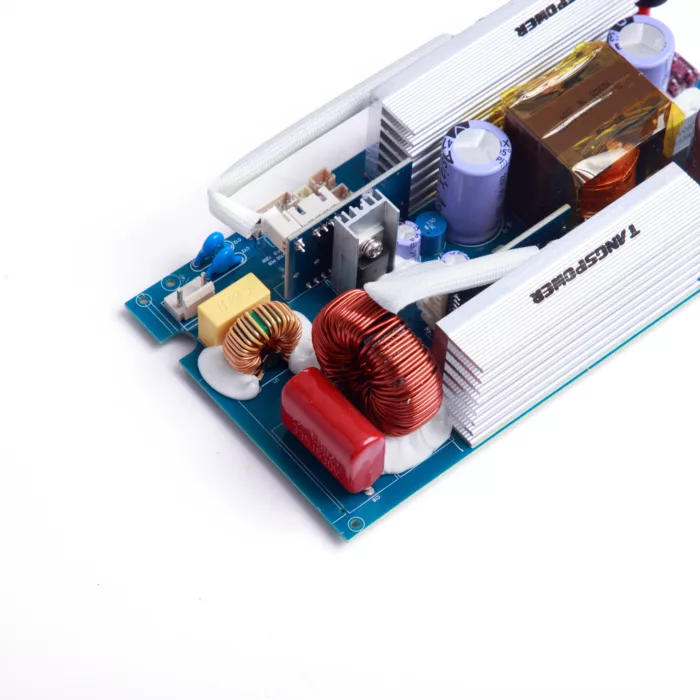

600W inverter board
Output specifications 110VAC, 220VAC. DC rated input voltage 25.9V, ...
Output specifications 110VAC, 220VAC. DC rated input voltage 25.9V, DC voltage input range 20.0VDC-30.0VDC, using DC input low voltage protection, DC input over-voltage protection, AC output short circuit protection, inverter over-temperature protection, power-on self-test, front and rear stage isolation, no-load input current 110VAC/0.5A MAX. 230VAC/0.6A MAX. The rated output power is 600W, and the output voltage waveform is sine wave.
|model:||600W inverter board|
|place of production:||Shenzhen, China|
A. Power on self test, under-voltage protection alarm, over-voltage protection alarm, fan control.
B. Converts the direct current in the battery into alternating current or other forms of direct current.
C. inverter over temperature protection, AC output short circuit protection, the use of ambient temperature -10 degrees Celsius / +45 degrees Celsius.
D. sine wave inverter is highly efficient, energy saving and fast protection.
E. has fast dynamic response, good control performance and good electrical performance indicators.
Sustainable, Reliable & Affordable Energy!

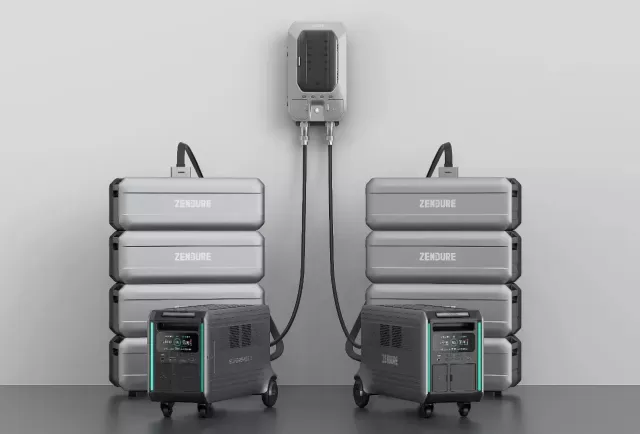

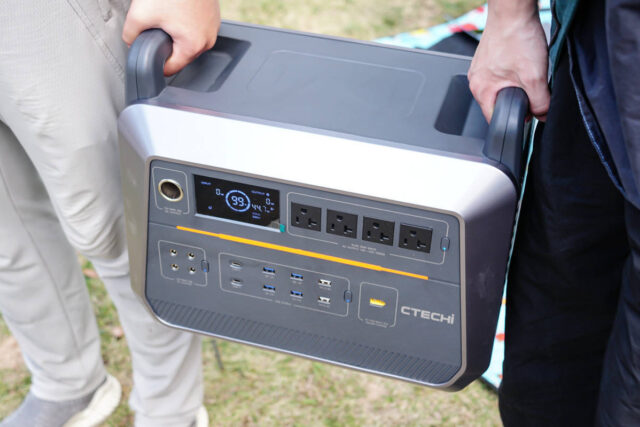

Sine wave inverters are used in new energy utilization, solar power generation systems, portable energy storage systems, home energy storage systems, and UPS uninterruptible power supply systems.
